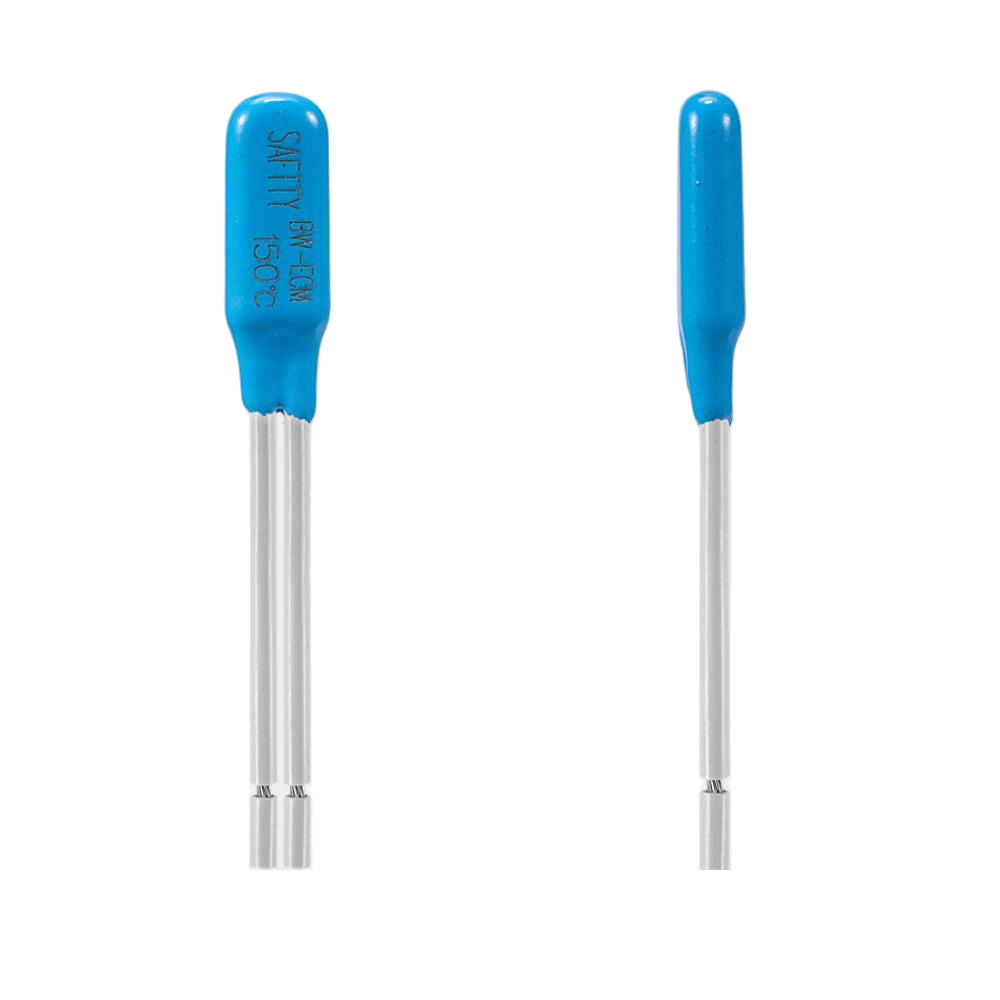

BW-EOM Epoxy resin Thermal protector

Power class: 2A

Type series: BW-E

normally open
resets automatically
with connector cables
blue epoxy resin insulation

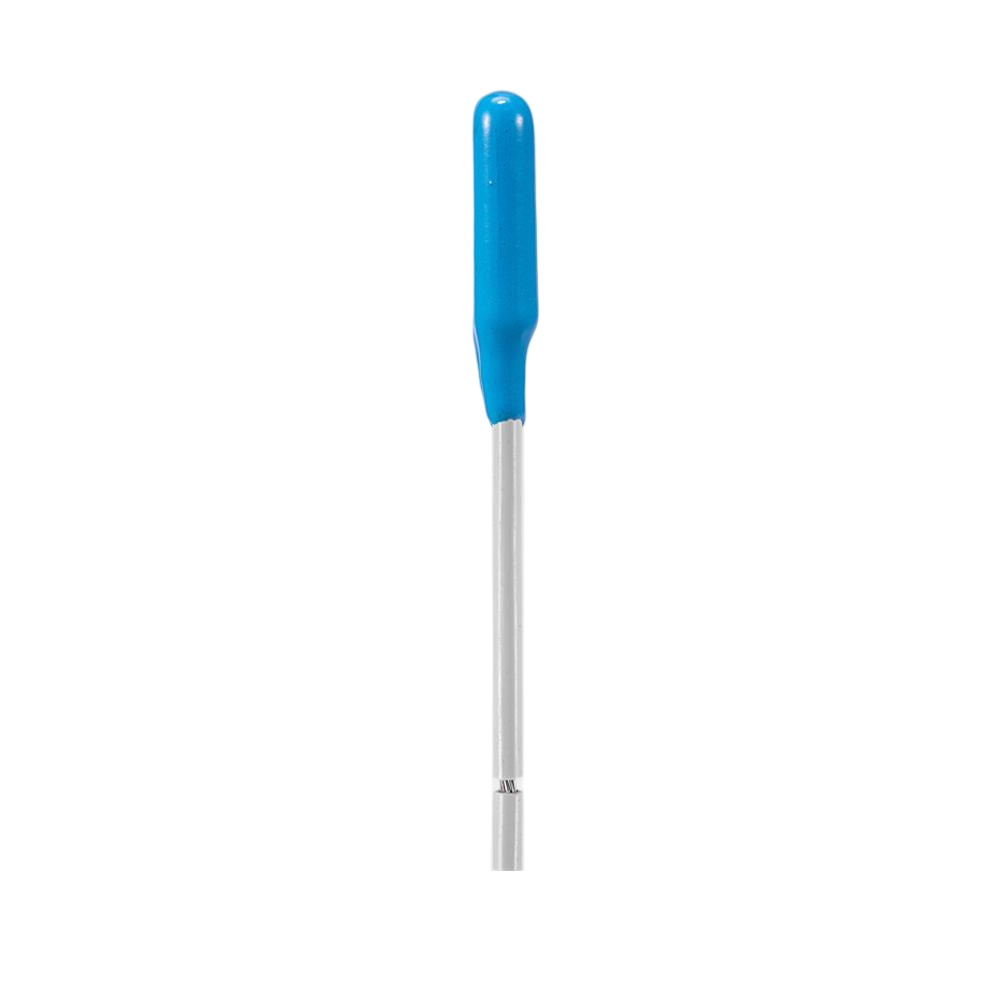

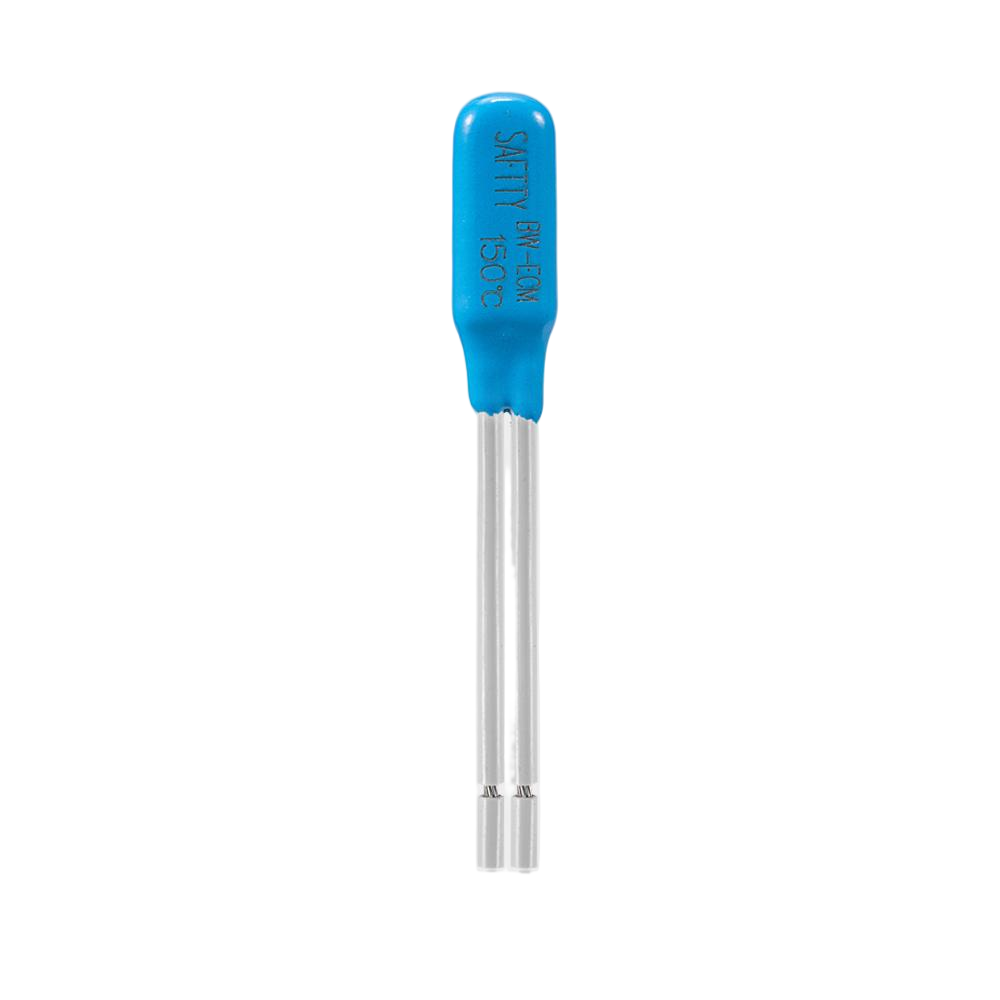

BW-ECM 环氧_1
BW-ECM 环氧_2

BW-EOM Epoxy resin Thermal protector

Main parts

1) Shell  2) Base  3) Bimetal disc  4) Movable contact

5) Temperature calibration plate  6) Static contacts



Construction

The movable contact are welded to the bimetal sheet and then wel-ded to the iron bracket. The stationary silver contact and base are molded into a whole, after the current passes through the temper-ature calibration plate and the bimetal disc, it forms a loop from the moving contact to the static contact.


Function

Under normal conditions,  the moving contact is in close contact with the stationary silver contact under the pre-pressure of the bimetal disc;  When the rated operating temperature is reached, the bimetal disc is deformed by heat and snap rapidly,  cut off the circuit. After that, the device begins to cool down. When it reaches the defined reset temperature, the bimetal disc and the spring disc snaps back into its start position, the contacts will close again, and the device starts working again.


PRODUCT PARAMETER

Nominal switching temperature (NST) in 5°C
35 °C - 160 °C
Tolerance (standard)
±5K
Reverse switch temperature (RST) tolerance
See datasheet
Thickness
3.7mm
Width
5.8mm
Length
21mm
Resistance to impregnation
suitable
Pressure resistance to the switch housing
300N
Standard connection
0.33 mm² / AWG22
Available approvals
UL/VDE/CQC
Operating voltage range AC/DC
up until 500 V AC / 36 V DC
Rated voltage AC
250 V
Rated current AC cos ϕ = 1.0 /cycles
2A / 6,000
Rated voltage DC
24.0 V
Max. switching current DC /cycles
3 A / 6,000
Insulation voltage
1.5 kV
Total bounce time
< 1 ms
Contact resistance
≤ 50 mΩ

PRODUCT PARAMETER
