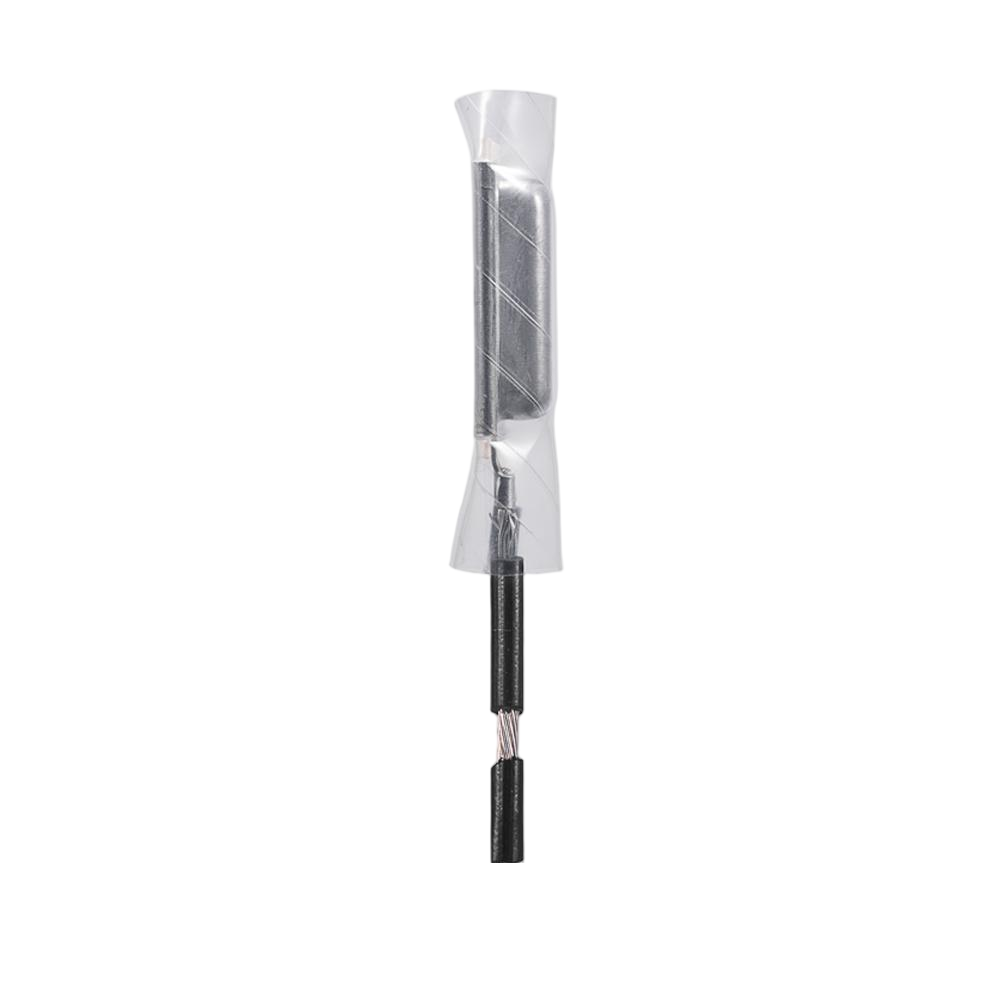

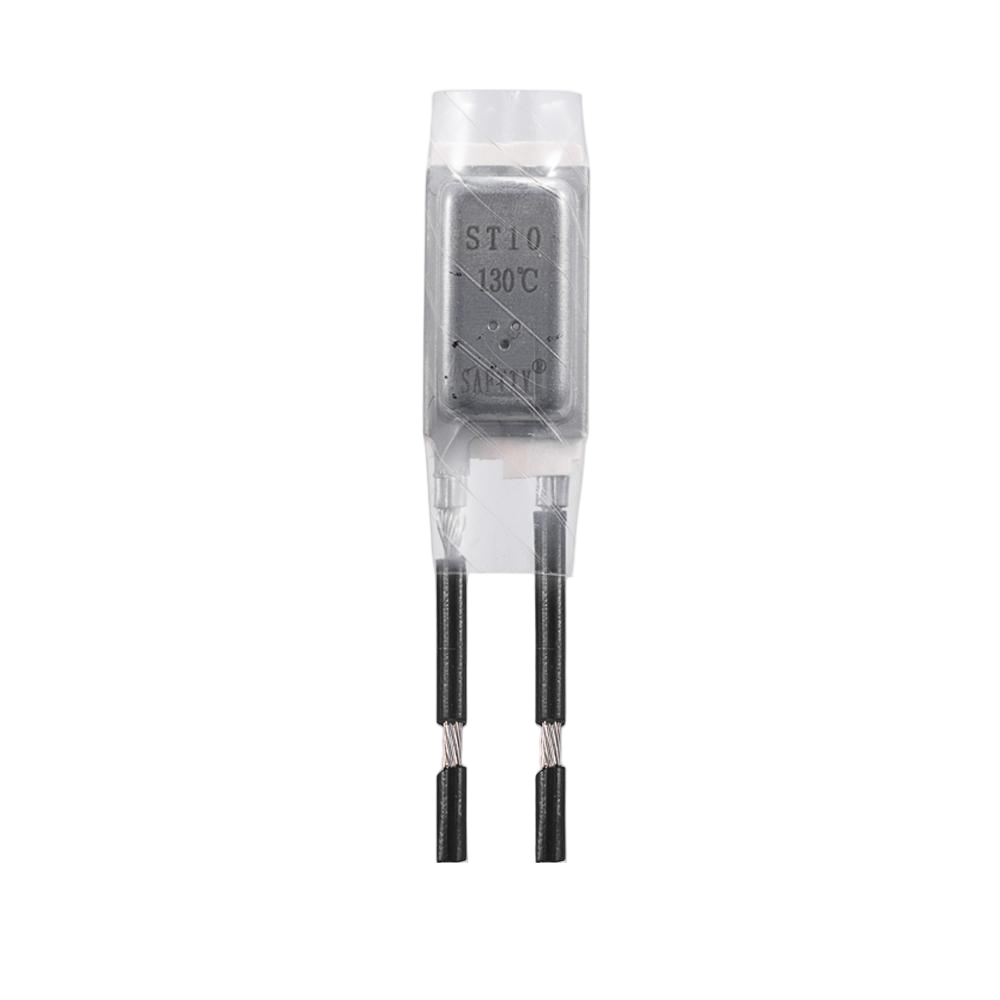

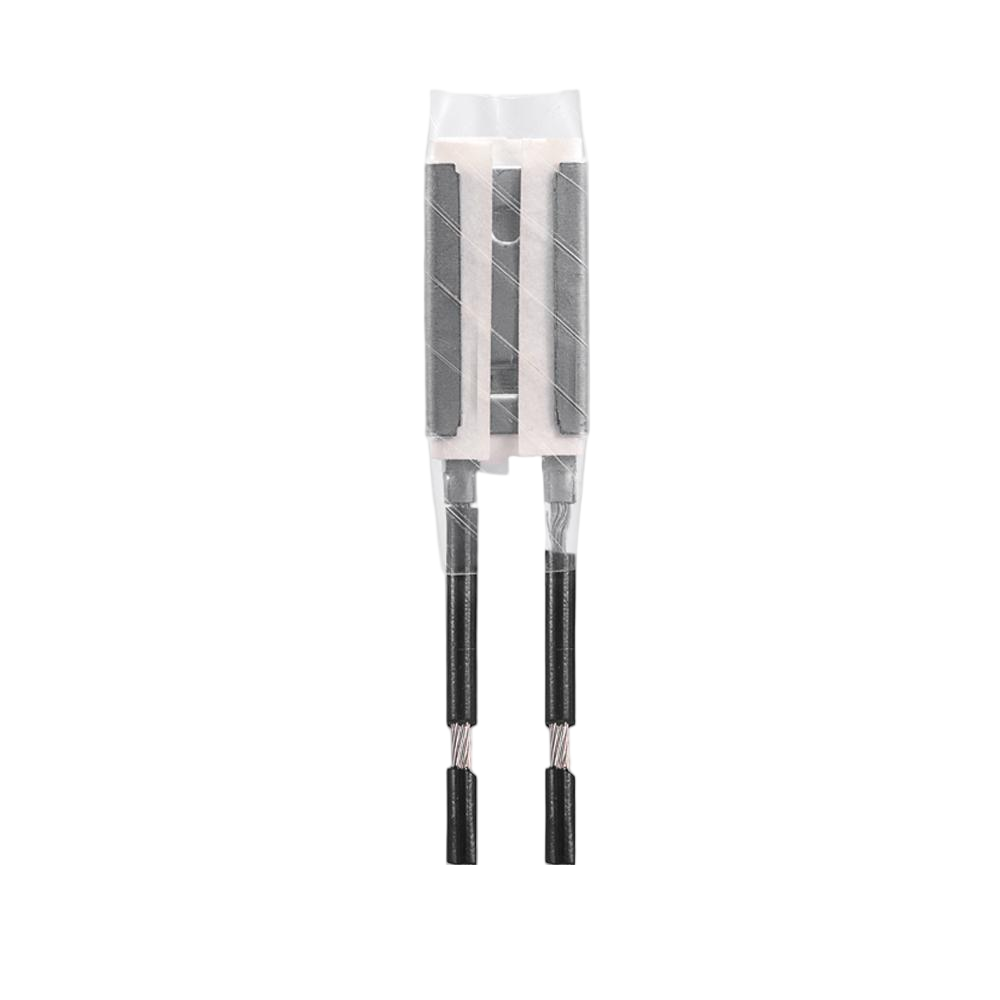

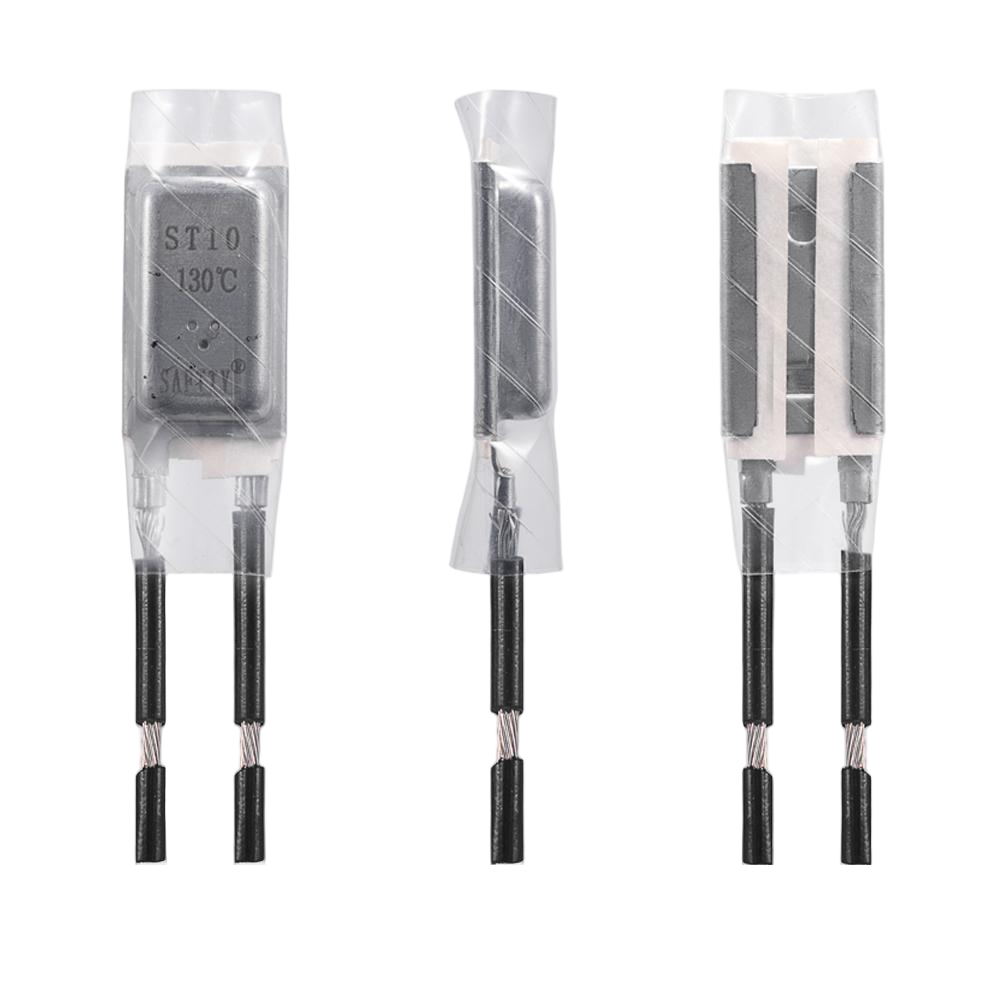

ST10 Thermal protector
Power class: 25 A
Type series: ST10
normally closed
resets automatically
with connector cables
transparent PET cap insulation
ST10 Thermal protector
ST10 high-current thermal protector is a high-current protector with overcurrent, overheating double protection function, built-in heating plate and bimetal disc to form a series circuit. The overload current when the motor is blocked will make the heating wire heat up rapidly, which will heat the bimetal disc and accelerate the heating speed of it, so that the bimetal disc can reach the rated operating temperature faster and bounce open, cutting off the circuit.
PRODUCT PARAMETER
Nominal switching temperature (NST) in 5°C
80 °C - 170 °C
Tolerance (standard)
±5K
Reverse switch temperature (RST) tolerance
See datasheet
Thickness
7.6mm
Width
16.2mm
Length
37mm
Resistance to impregnation
suitable
Pressure resistance to the switch housing
500N
Standard connection
1.0 mm² / AWG16
Rated voltage AC
250V
Rated current AC cos ϕ = 1.0 /cycles
25A/ 2000
Insulation voltage
1.5 kV
Contact resistance
≤ 50 mΩ
Vibration resistance at 10 ... 60 Hz
100 m/s²
